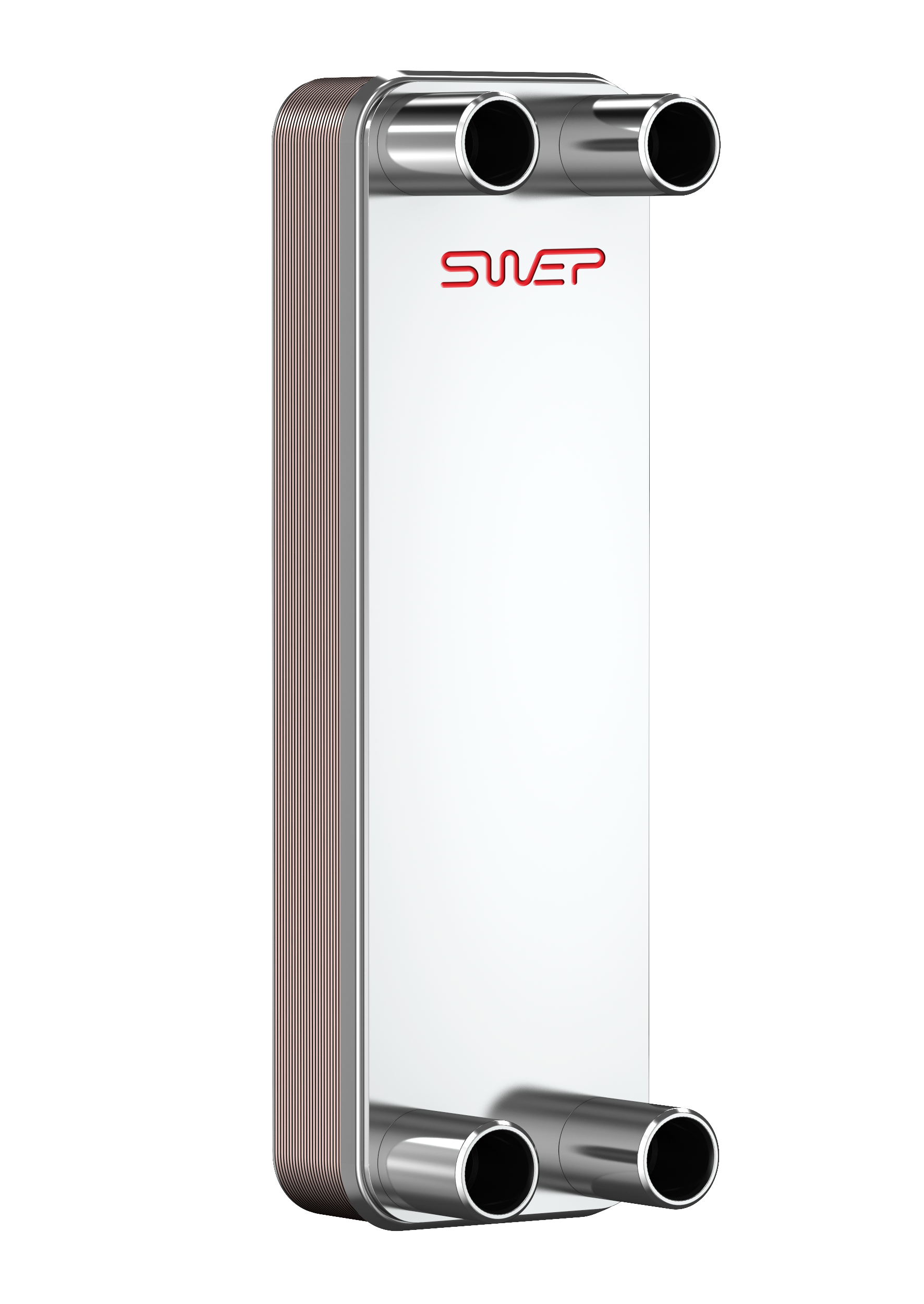

25T
B25THx20/1P-SC-S 4x1"
082590.0
13845
20
Product Specifications
Details
| B | S | ||
| 25T | 13845 | ||
| H | 5.817 | ||
| 20 | 9 | ||
| 1P | 1.134 | ||
| SC - 316/316L stainless steel plates, copper brazing |
Dimensions
This is a schematic sketch. For correct drawings please use the Request drawing function
| 526.0 | 49.0 | ||
| 119.0 | 6.0 | ||
| 479.0 | |||
| 72.0 |
Connections
F= Front side connections, P = Back side connections
| Position | Art Number | Denomination | Height (E) | Material |
|---|---|---|---|---|
| F1, F2, F3, F4 | 45051 | ISO-G 1" A NON-CASTED | 45 | SS - 316/316L Stainless Steel |
