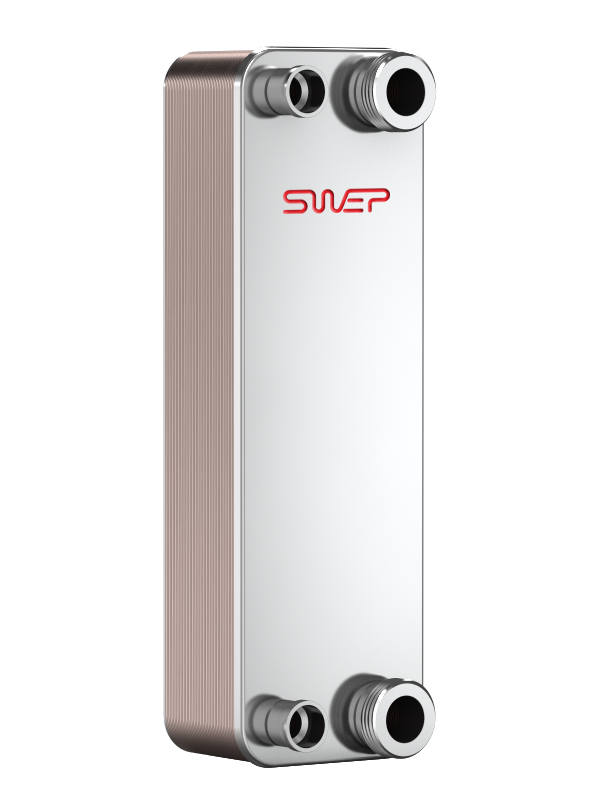

5T
B5THx30/1P-SC-M 4x3/4"&16
0135434.0
14626
30
Product Specifications
Details
| B | M | ||
| 5T | 14626 | ||
| H | 2.05 | ||
| 30 | 4 | ||
| 1P | 0.336 | ||
| SC - 316/316L stainless steel plates, copper brazing |
Dimensions
This is a schematic sketch. For correct drawings please use the Request drawing function
| 193.0 | 71.2 | ||
| 76.0 | 6.2 | ||
| 154.0 | |||
| 40.0 |
Connections
F= Front side connections, P = Back side connections
| Position | Art Number | Denomination | Height (E) | Material |
|---|---|---|---|---|
| F1, F2, F3, F4 | 32835 | ISO-G 3/4" & SOLDER 16 | 20 | SS - 316/316L Stainless Steel |
