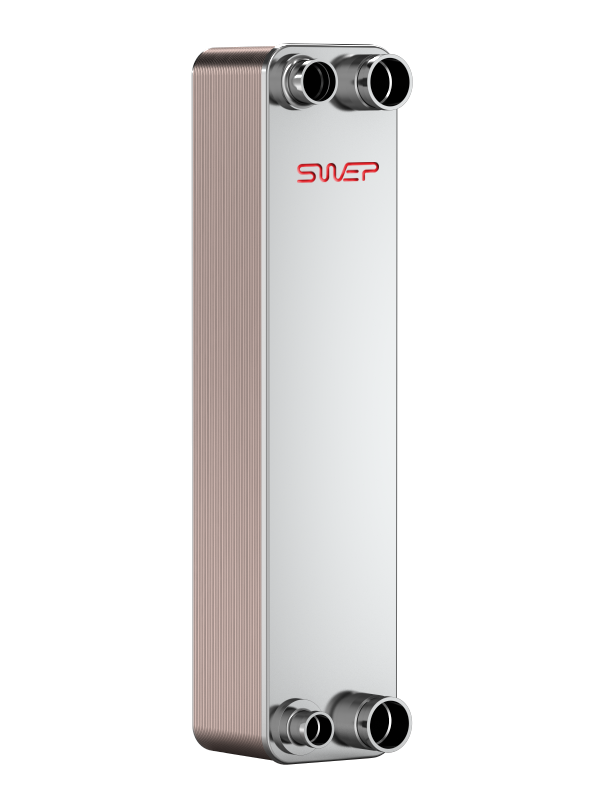

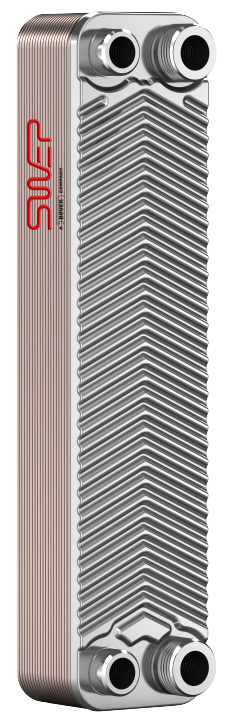

10T
B10THx30/1P-SC-S 4x1"INT HEX
0227428.0
15242
30
Product Specifications
Details
| B | S | ||
| 10T | 15242 | ||
| H | 4.178 | ||
| 30 | 9 | ||
| 1P | 0.868 | ||
| SC - 316/316L stainless steel plates, copper brazing |
Dimensions
This is a schematic sketch. For correct drawings please use the Request drawing function
| 289.0 | 71.2 | ||
| 119.0 | 6.0 | ||
| 243.0 | |||
| 72.0 |
Connections
F= Front side connections, P = Back side connections
| Position | Art Number | Denomination | Height (E) | Material |
|---|---|---|---|---|
| F1, F2, F3, F4 | 45397 | ISO-G 1" A INT HEX NON-CASTED | 27 | SS - 316/316L Stainless Steel |
