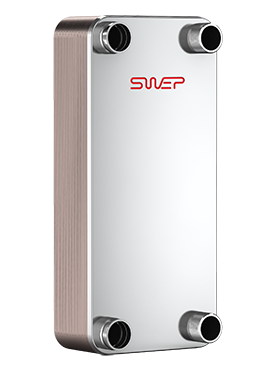

120T
B120THx40/1P-SC-M 2x42U+2x1 1/2"&35.1
0102085.0
14171
40
Included Accessories
- STUDBOLT LOC F B120T/50/200 4XM12X20 C140X100
Product Specifications
Details
| B | M | ||
| 120T | 14171 | ||
| H | 24.676 | ||
| 40 | 27.4 | ||
| 1P | 5.016 | ||
| SC - 316/316L stainless steel plates, copper brazing |
Dimensions
This is a schematic sketch. For correct drawings please use the Request drawing function
| 525.0 | 101.6 | ||
| 243.0 | 4.0 | ||
| 456.0 | |||
| 174.0 |
Connections
F= Front side connections, P = Back side connections
| Position | Art Number | Denomination | Height (E) | Material |
|---|---|---|---|---|
| F2, F4 | 32836 | ISO-G 1 1/2" & SOLDER 35.1 | 27 | SS - 316/316L Stainless Steel |
| F1, F3 | 45083 | SOLDER 42U NON-CASTED | 27 | SS - 316/316L Stainless Steel |
Included Accessories & Options
| Accessory Type | Side | Description |
|---|---|---|
| Welding Bolt | F | STUDBOLT LOC F B120T/50/200 4XM12X20 C140X100 |
